TPP Solenoid
Outline
TTP solenoid is good for lock. Energizing time is about 20ms. The right and left 2 position are held by the permanent magnet. Mechanical holding mechanism and the return spring is not required, it is the simplify mechanism. |

Applications
TPP Solenoids are suitable for Office & sales equipment and Security such as cash-box, cash registers and door-lock.
Office & Sales equipment |
![]() Security |
Features
- Turning off the power supply, the permanent magnets will maintain a holding force.
- Time to energization is less than 0.1 second.
- Circuit is simple because the two lines.
- Good for Power Saving.
Product Lineup
Slide→(mobile user)
Model No. | Holding force(N) (non-voltage) |
Size(mm) | Nominal stroke(mm) |
Force(N) right to left left to right |
Price | Details |
---|---|---|---|---|---|---|

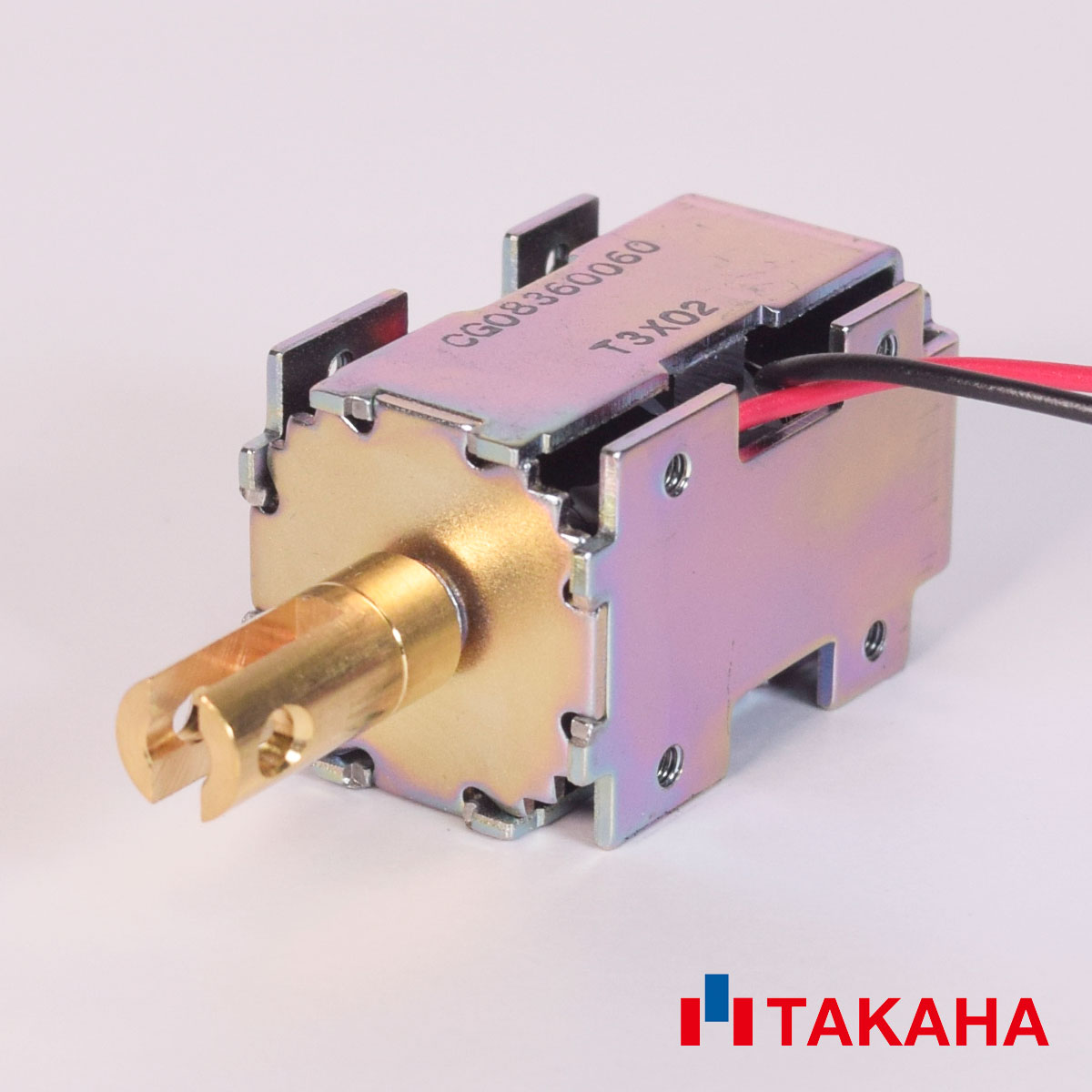

![]() CG0836 |
10 | D23.0 W23.0 H36.8 |
5 | 2.4 2.7 |
$31.43 | ![]() |
