Open Frame Push Solenoids

Outline

A push solenoid has a push bar attached to the curved head of the plunger. With the push bar, this solenoid can attract and repel at the same time.
It is able to simply push, so no complex mechanisms are necessary.
*The explanation of solenoids below is limited to our company’s products.

Applications

Open frame push solenoids are often used for Game and entertainment equipment and Home, daily equipment and Security such as vibratory devices, Electric lock and so on.


Entertainment
Home & Office Security

Features

A push solenoid has a push bar attached to the curved head of the plunger and when the plunger is pulled into the solenoid the push bar extends out the opposite end.

Because a push solenoid uses the suction of the plunger to push out the push bar, the force increases the farther out the push bar is.

The suction force – stroke relationship for diagrams 1 and 2 is displayed in the graph.

Force – stroke relationship

Push solenoids have a return spring in place to return the plunger to a fixed position when no other force is applied to the plunger. The force applied by the return spring is included in the pull force – stroke relationship graph to the right.

*The pull force value is that with the spring attached
Slide→（mobile user)
Model No. Size(mm) stroke(mm)
Max
Nominal		 Force(N)
Nominal stroke
100%Duty
6%Duty		 Notes Price Details

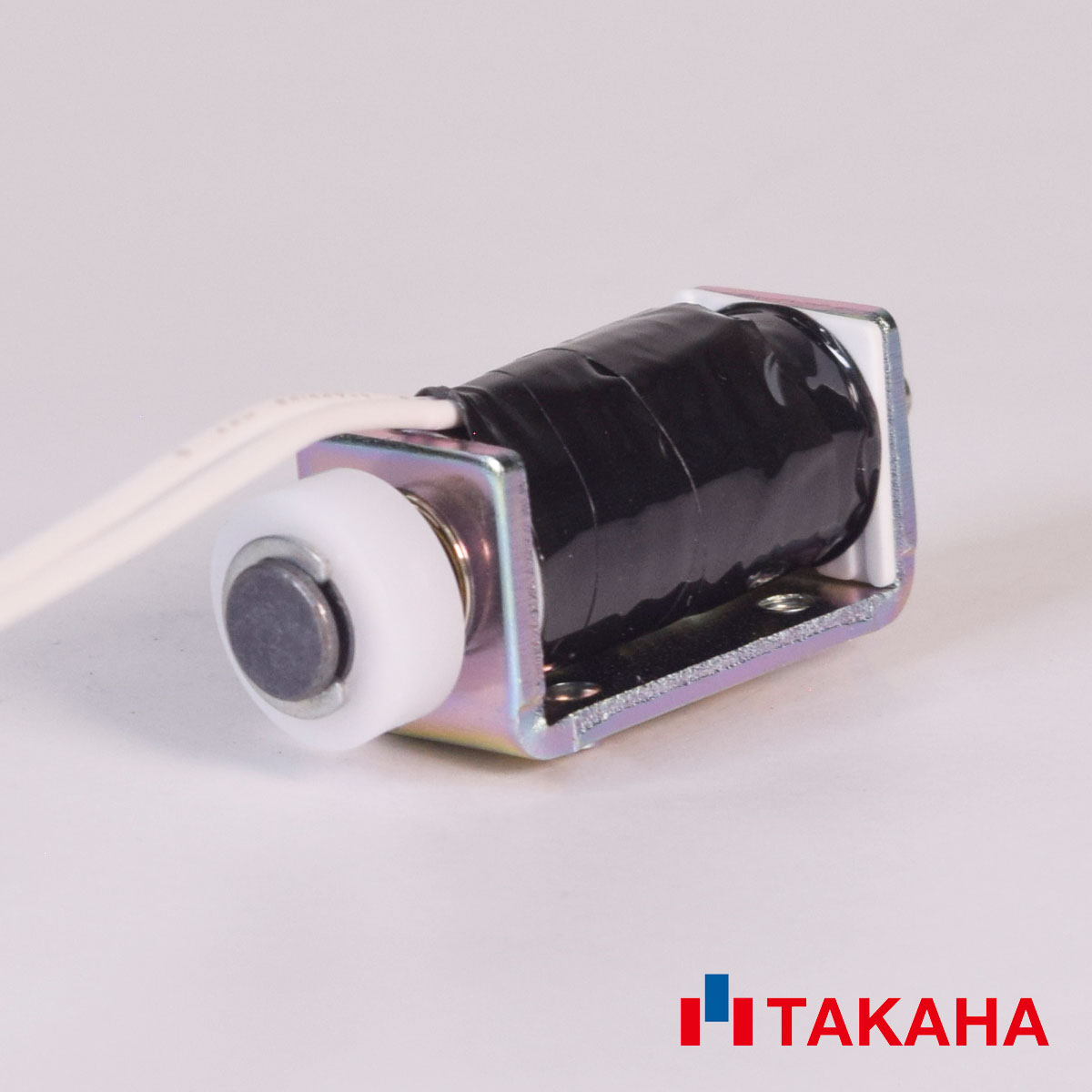

CB0730		 D14.0
W16.0
H30.0		 3
3		 0.06
3.70		 With
return
spring		 $12.96

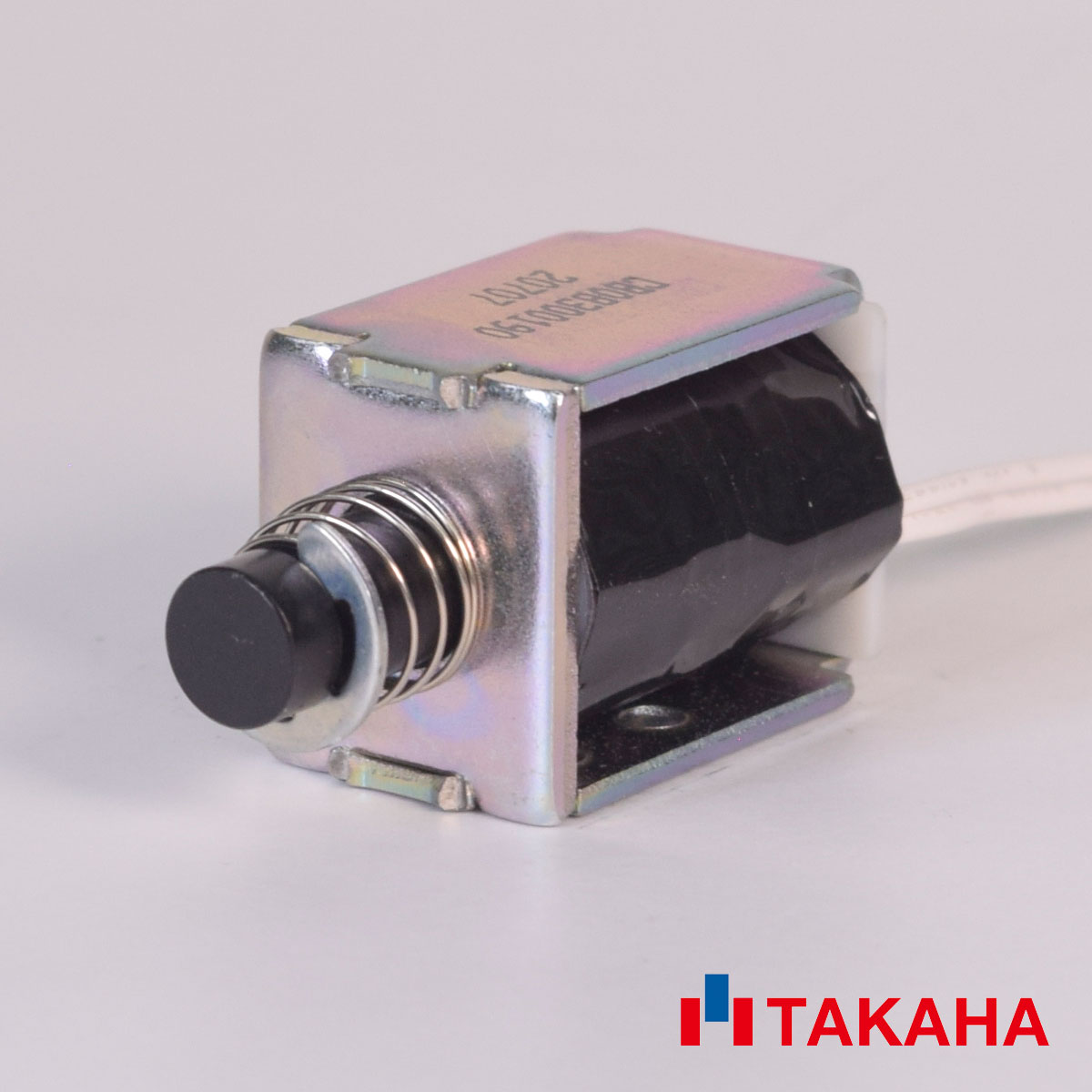

CB0830		 D18.0
W22.0
H30.4		 5
5		 1.20
8.50		 With
return
spring		 $16.86

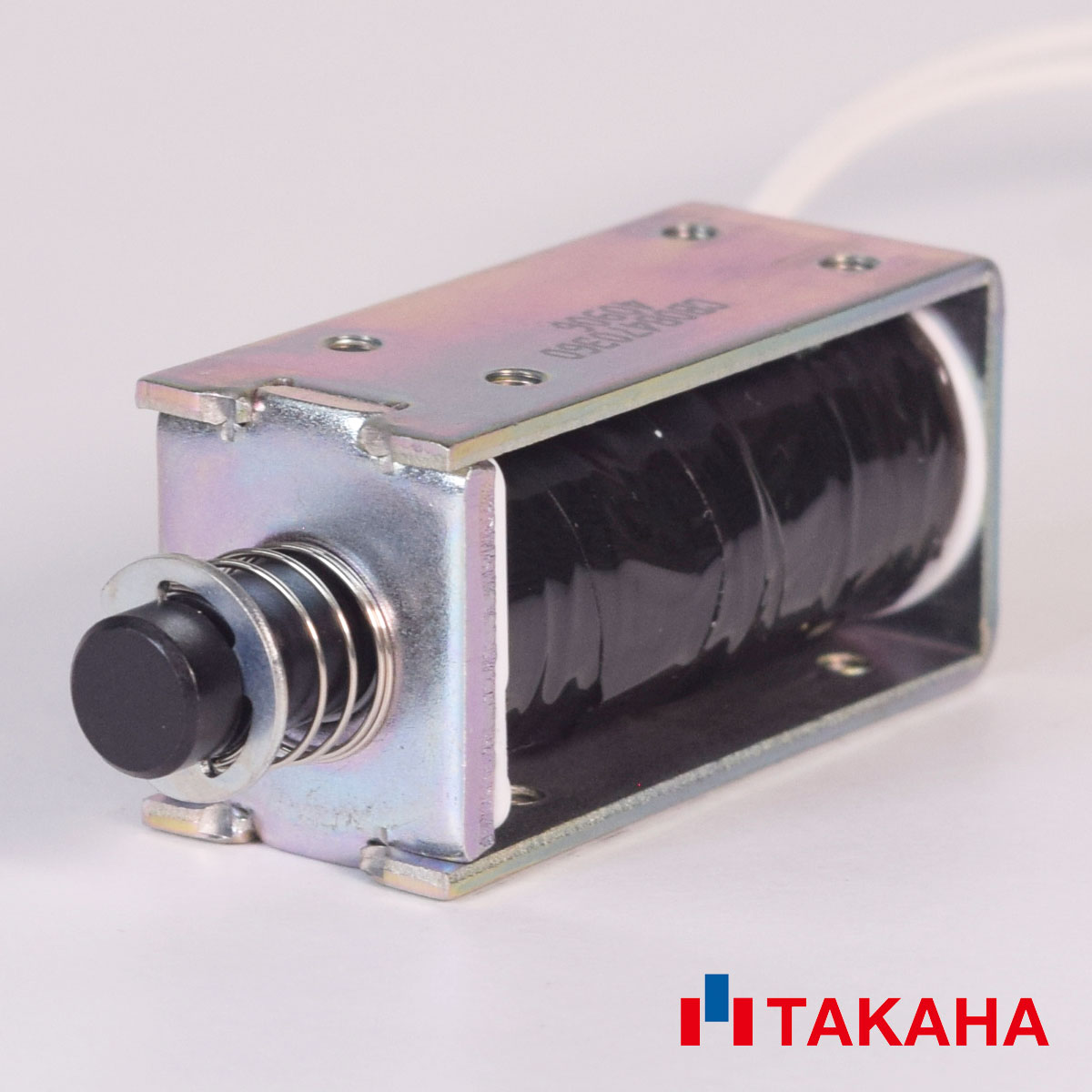

CB0847		 D19.0
W23.0
H47.0		 5
5		 2.20
8.70		 With
return
spring		 $17.37

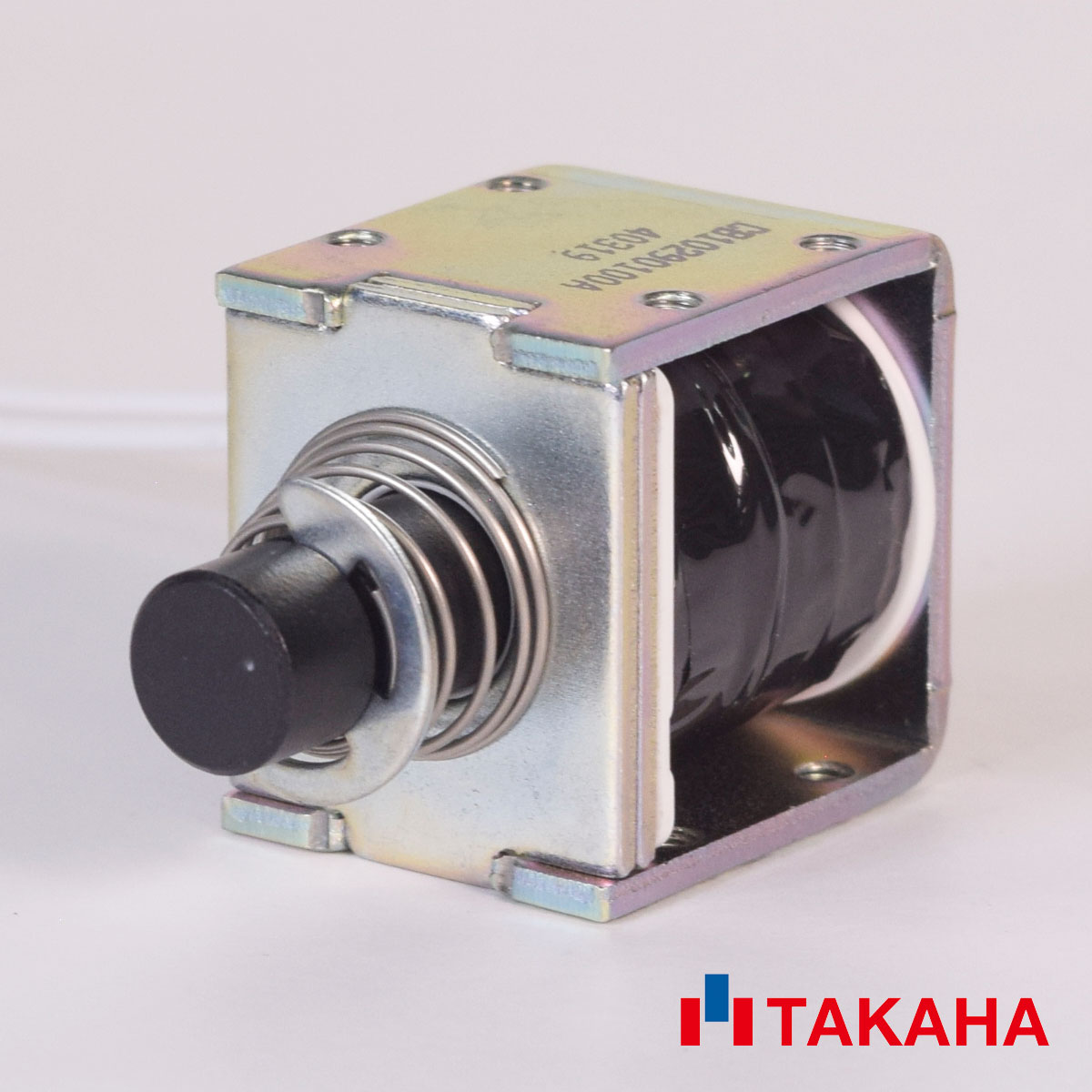

CB1029		 D24.0
W29.0
H29.3		 5
5		 0.96
14.70		 With
return
spring		 $17.98

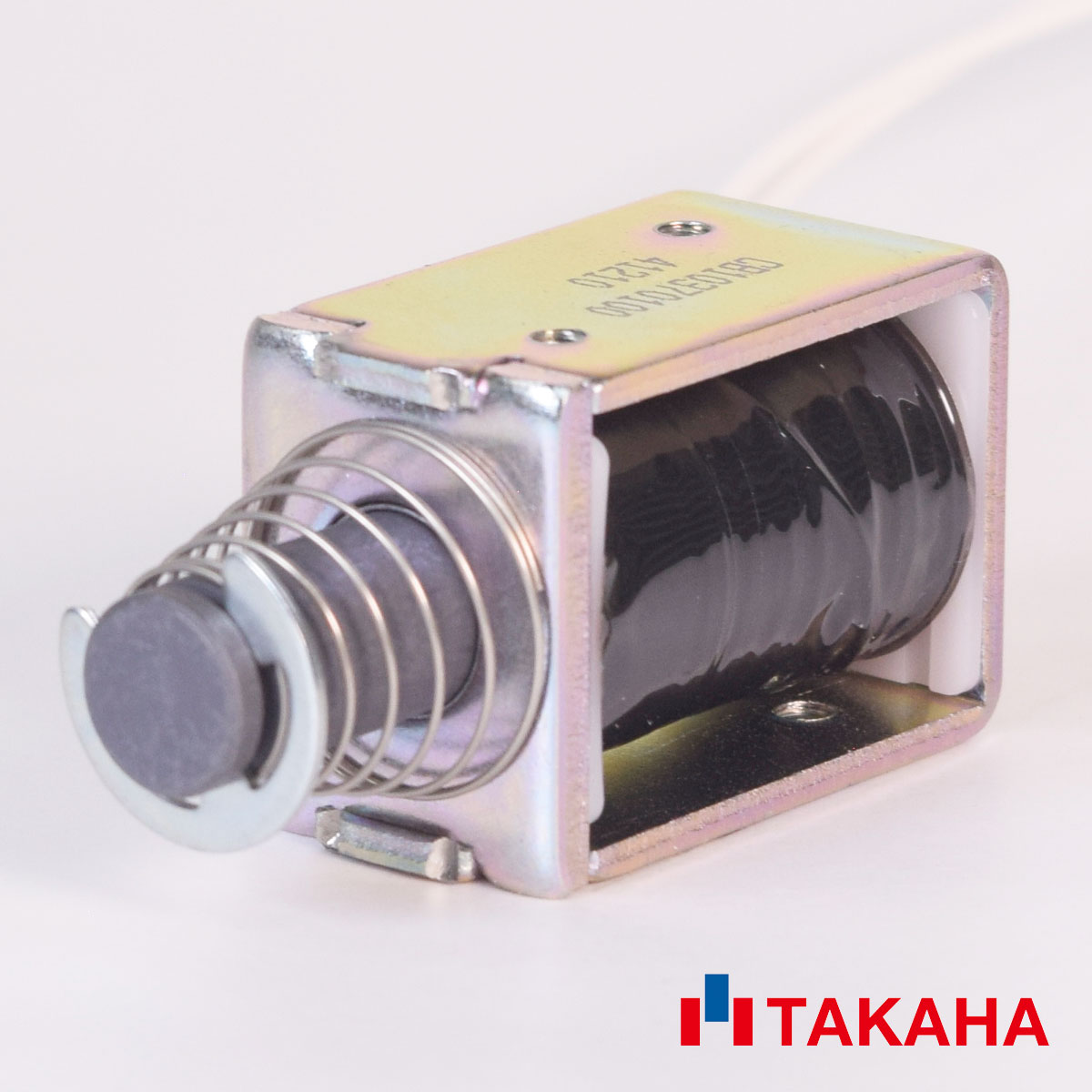

CB1037		 D20.0
W26.0
H37.0		 10
10		 0.40
7.10		 With
return
spring		 $20.43

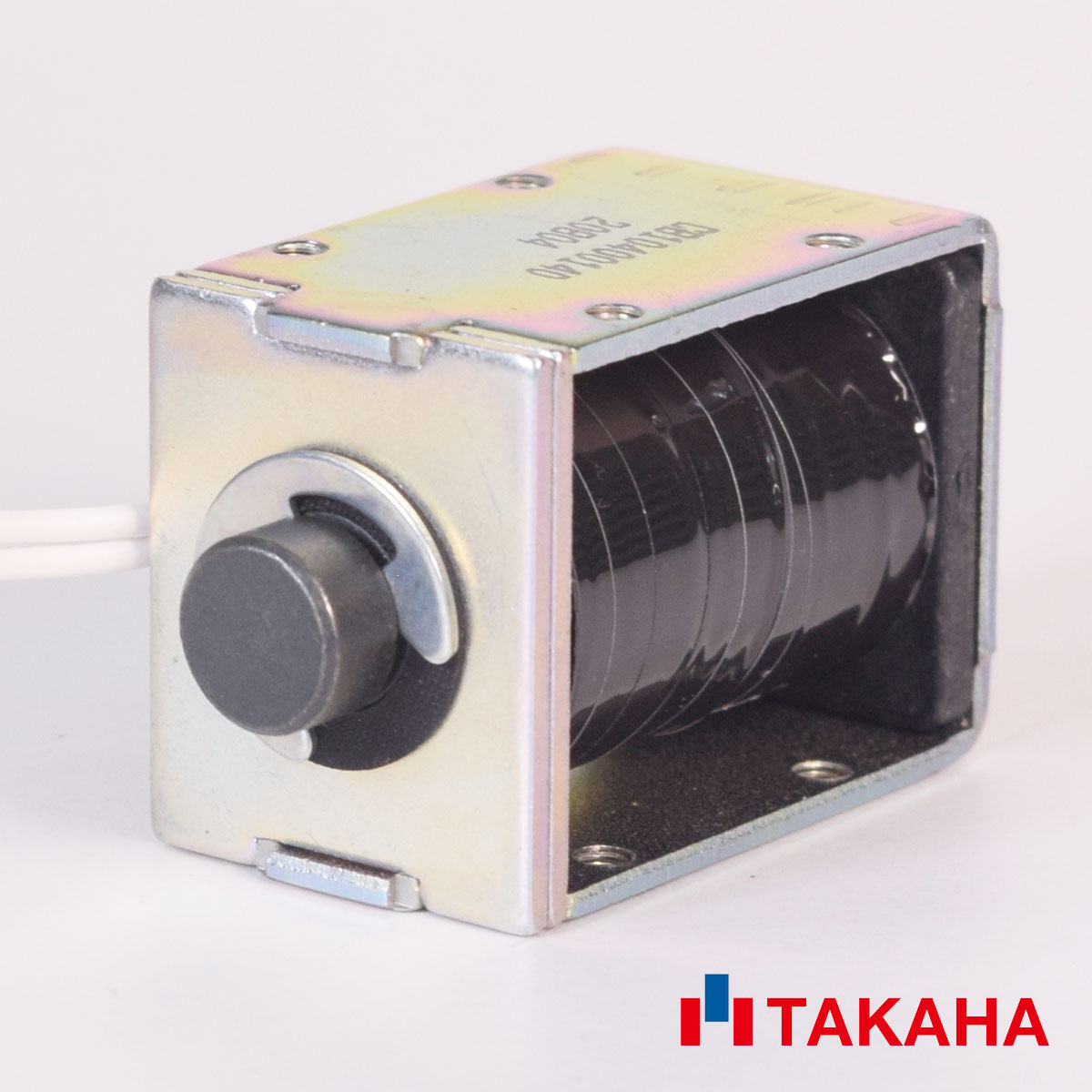

CB1040		 D24.0
W29.0
H40.0		 12
7		 1.40
12.50		 - $19.64

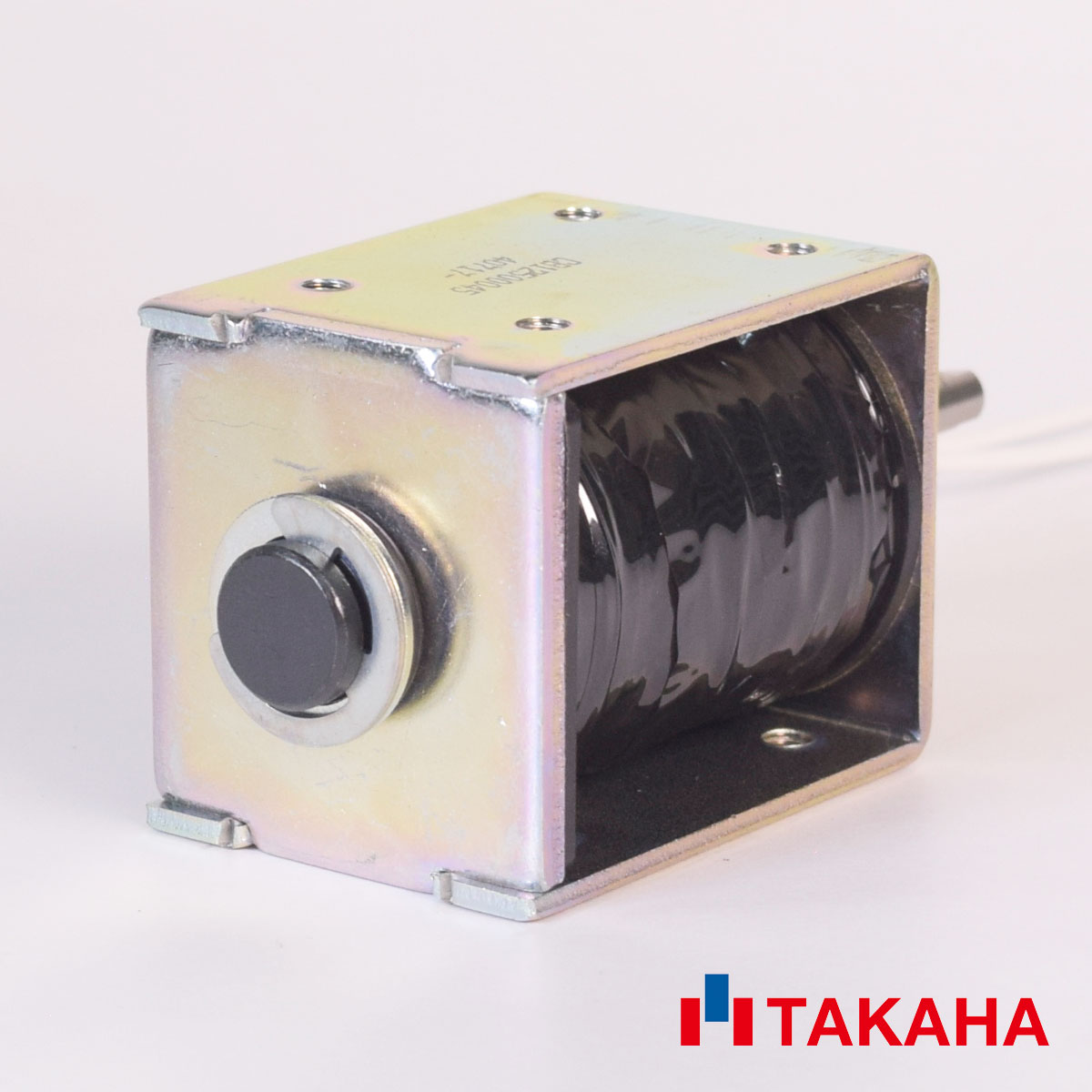

CB1250		 D36.0
W40.0
H50.0		 16
10		 5.30
25.60		 - $27.50

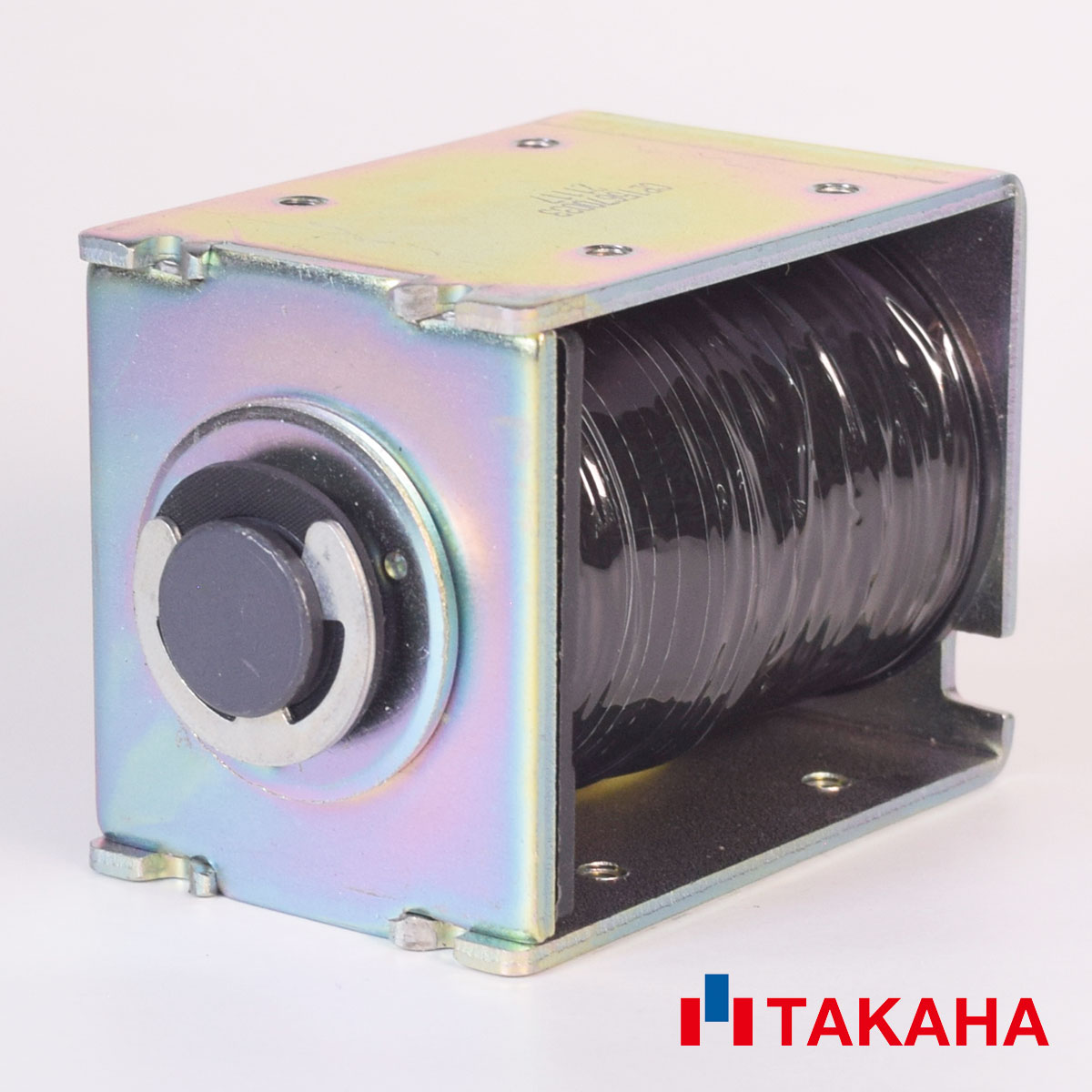

CB1567		 D44.0
W51.5
H66.7		 18
14		 10.50
41.20		 - $42.82

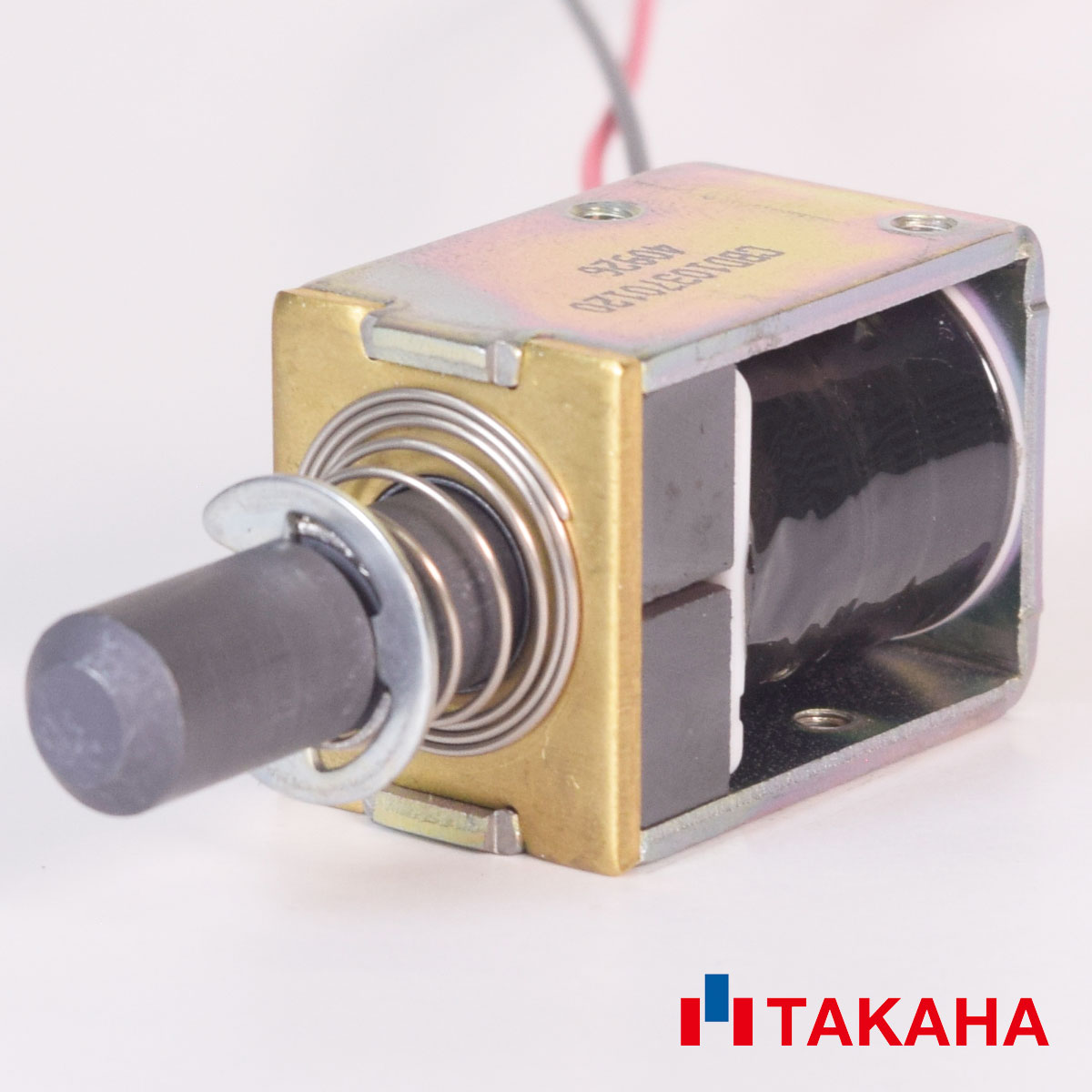

CBD1037		 D21.5
W26.0
H37.0		 7
7		 1.40
10.10		 magnetic latching
With
return spring		 $26.21

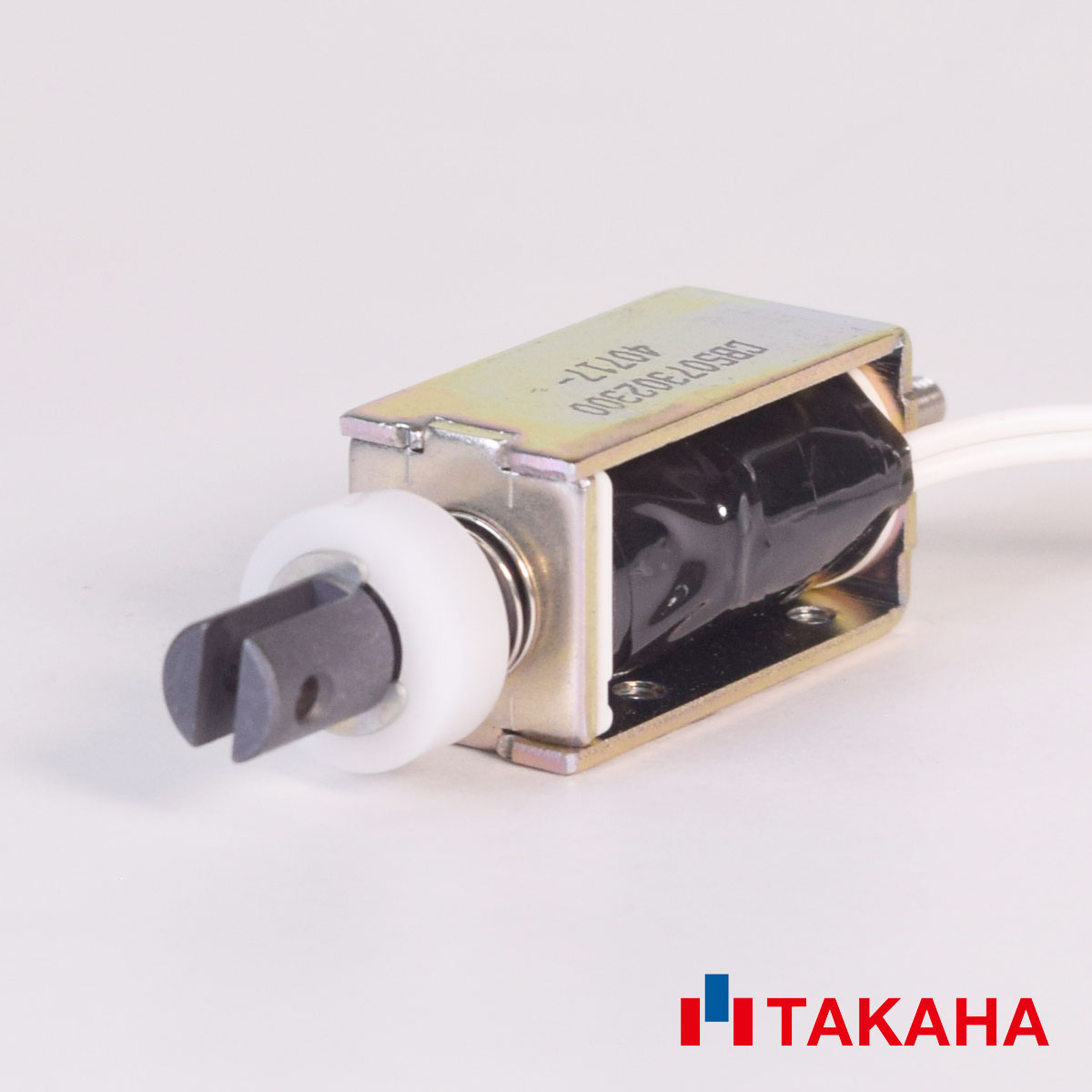

CBS0730		 D14.0
W16.0
H30.0		 5
5		 0.23
4.12		 screw top
With
return spring		 $15.31

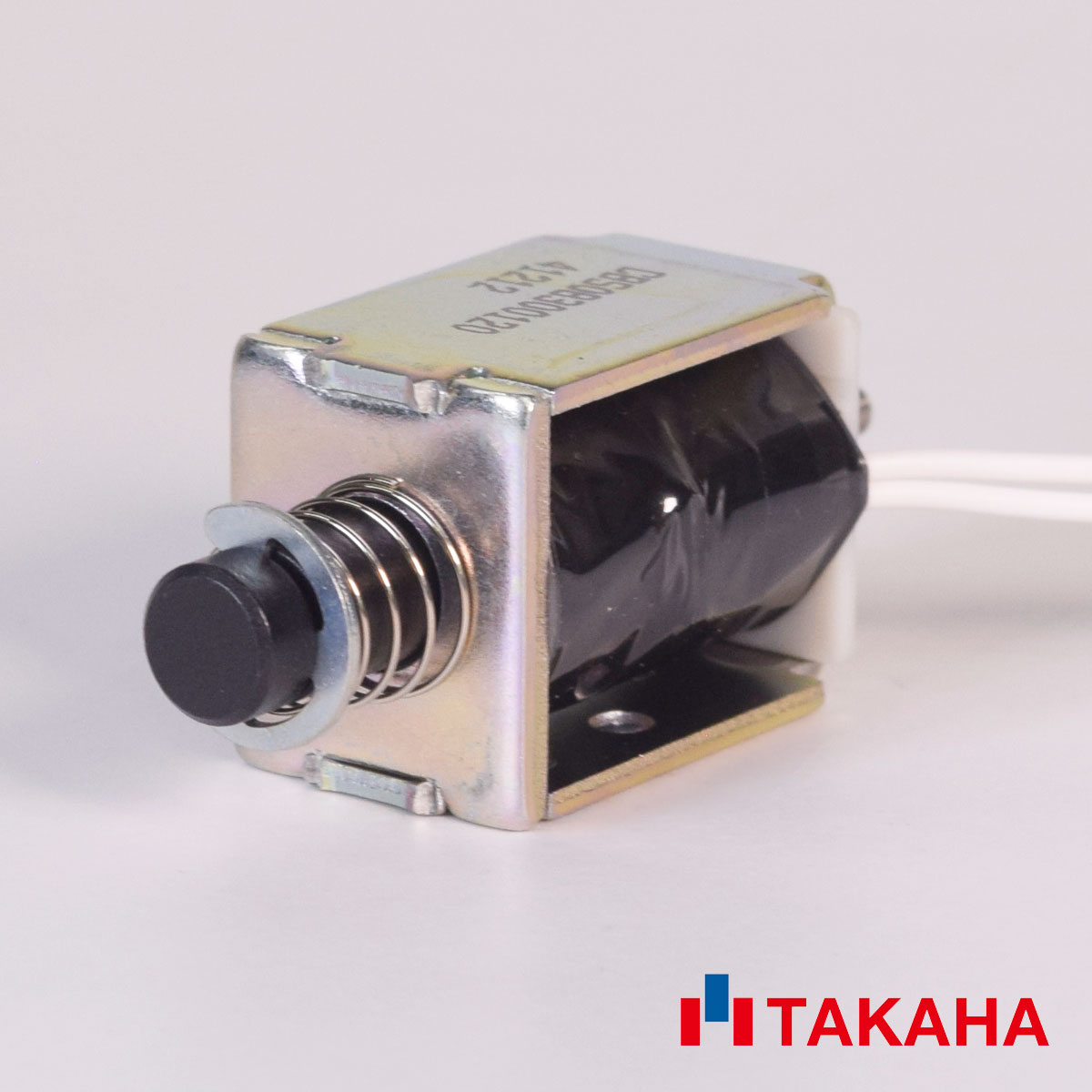

CBS0830		 D18.0
W22.0
H30.4		 5
5		 1.20
8.50		 screw top
With
return spring		 $26.21

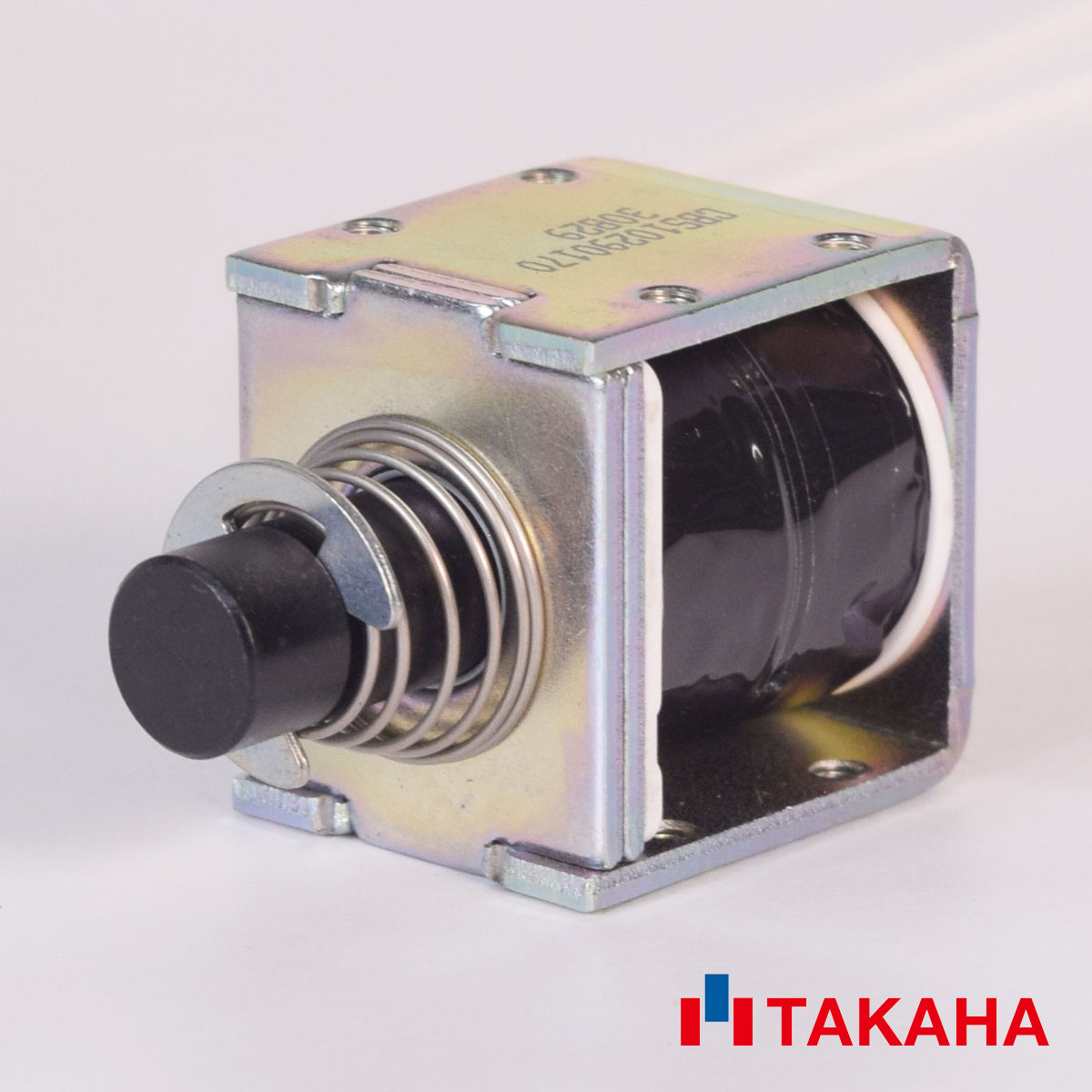

CBS1029		 D24.0
W29.0
H29.3		 5
5		 0.96
14.70		 screw top
With
return spring		 $18.69

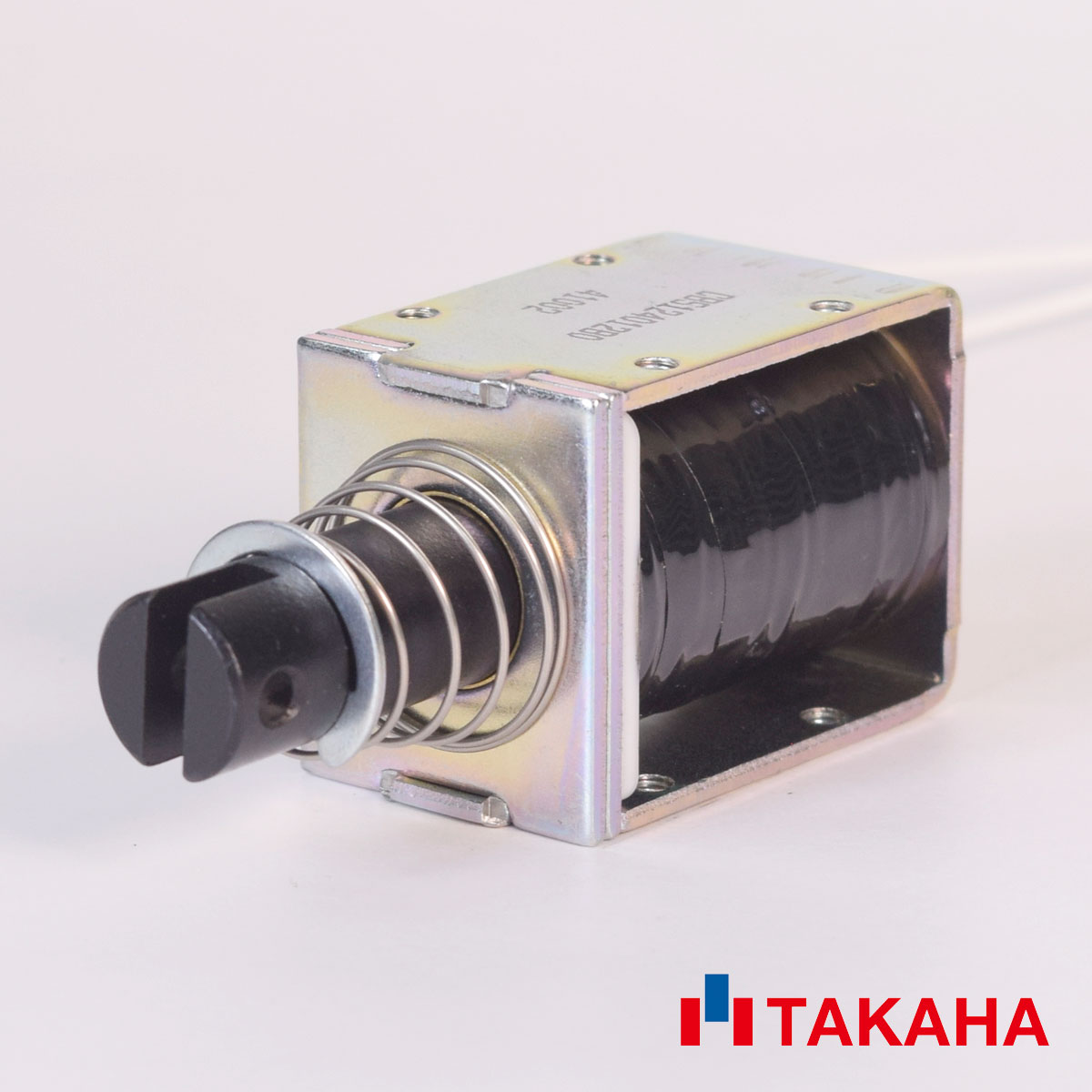

CBS1240		 D24.0
W29.0
H40.0		 10
10		 1.80
15.20		 screw top
With
return spring		 $21.33
