DC5V solenoid

Outline

A solenoid that operates at DC5V. USB AC adapter and mobile battery can be used as power supply. Free yourself from the inconvenience of preparing a stabilized power supply!

Features

SSAH-0830 and SSBH-0830 have switch and USB microB connector. Just connect the power supply to use the solenoid!

Product Lineup

Slide→（mobile user)
Model No. Size(mm) stroke(mm)
Max
Nominal		 Force(N)
Nominal stroke
100%Duty
6%Duty		 Price Details

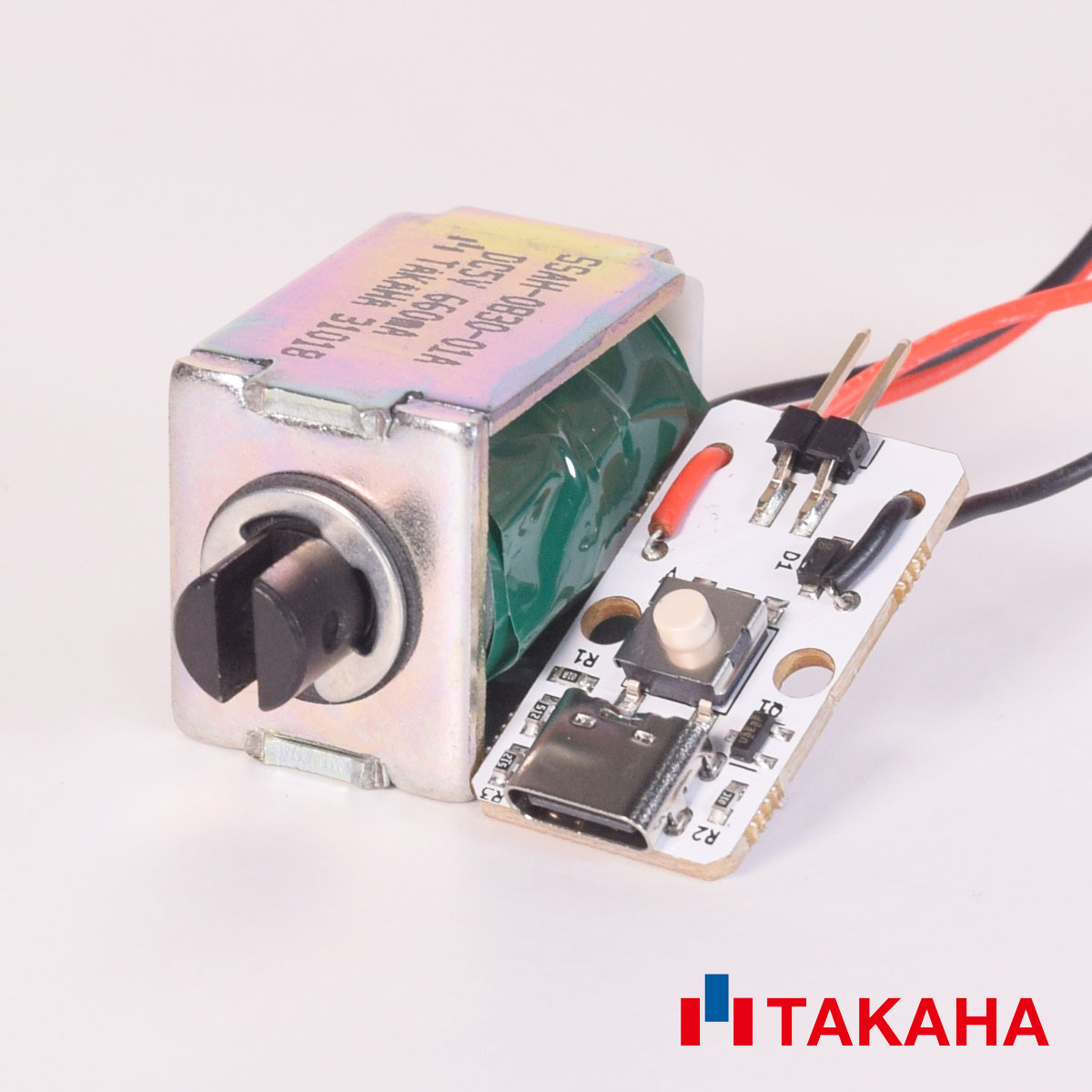

SSAH-0830		 D18.0
W22.0
H30.4		 5
5		 1.81
2.94		 $16.89

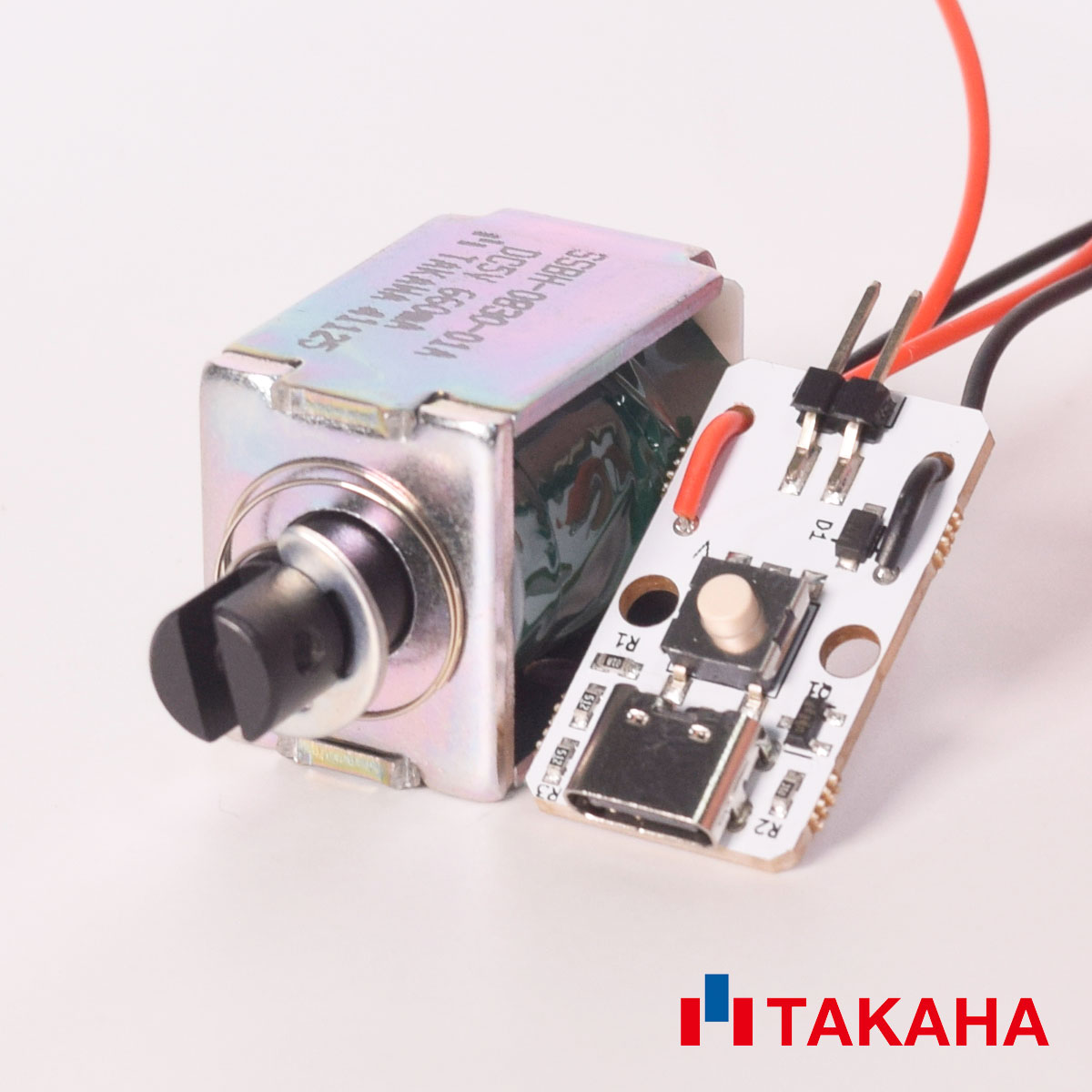

SSBH-0830		 D18.0
W22.0
H30.4		 5
5		 1.70
2.75		 $17.29

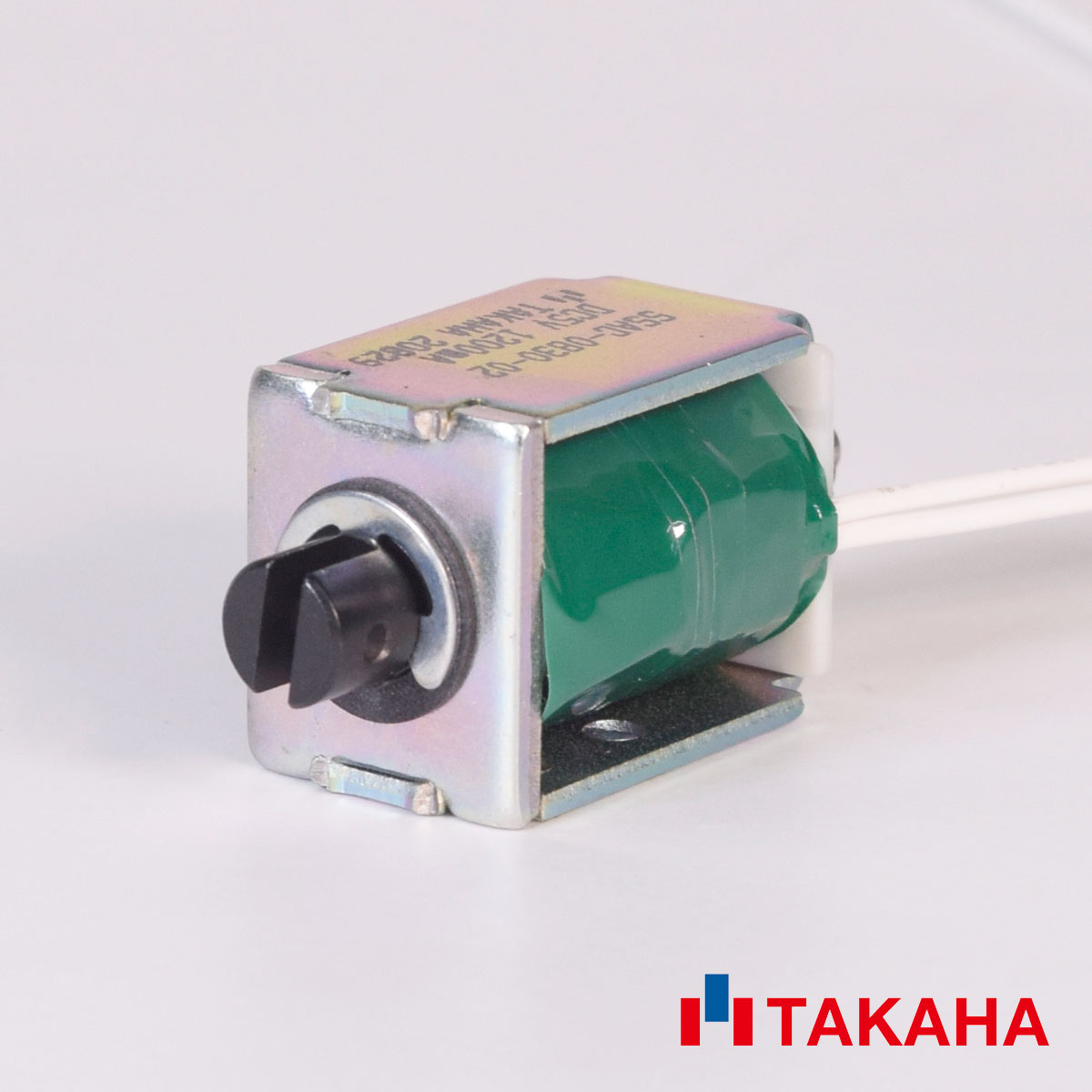

SSAC-0830		 D18.0
W22.0
H30.4		 5
5		 1.81
2.94		 $14.54

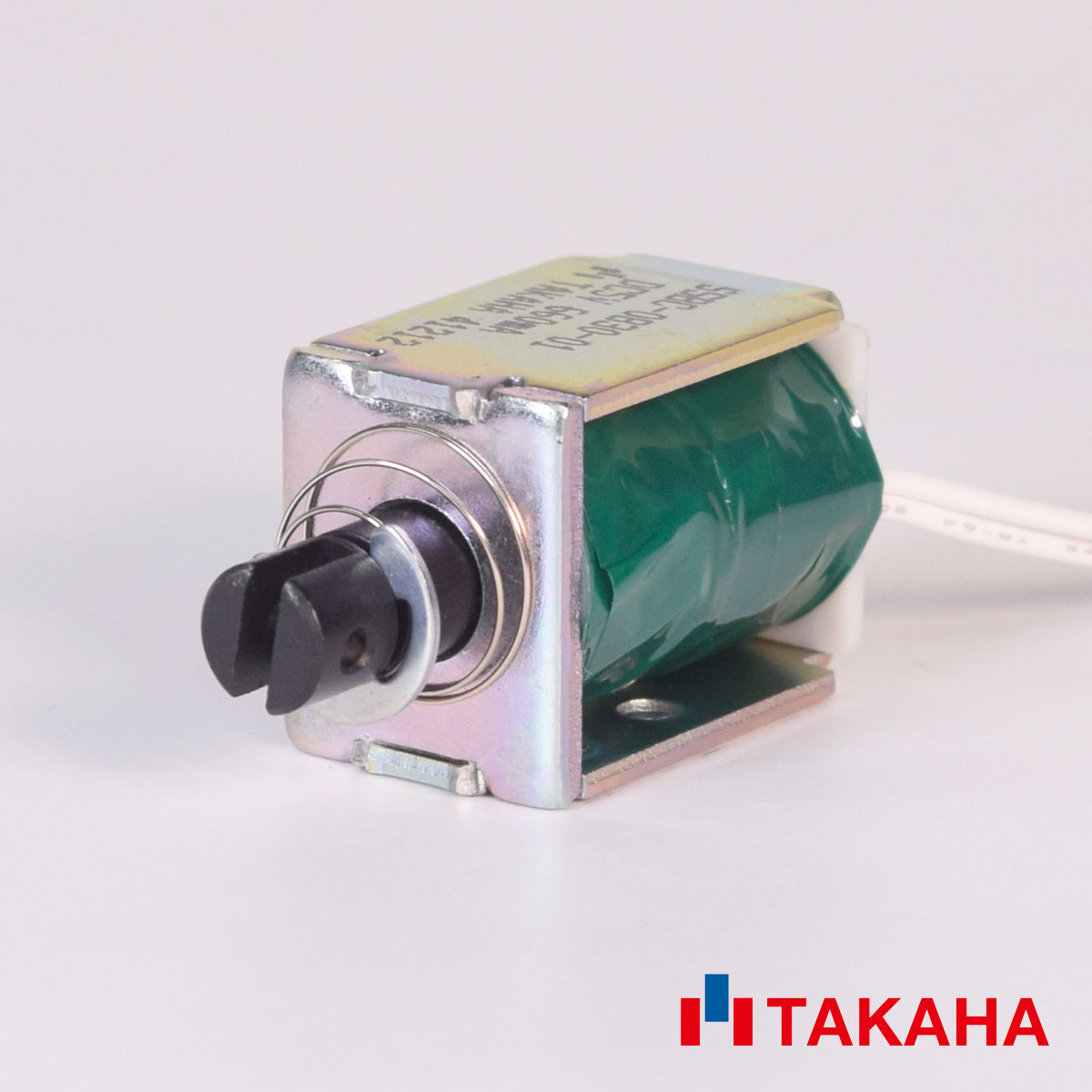

SSBC-0830		 D18.0
W22.0
H30.4		 5
5		 1.70
2.75		 $14.93
